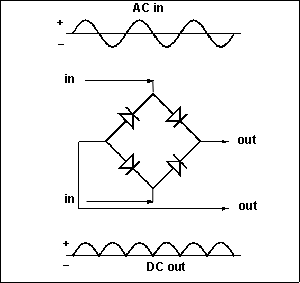

The purpose of the full wave bridge rectifier is to convert the AC into DC (see image, OUT on the left of the lozenge is ground or -, OUT on the right is +. That is also illustrated on the Crack schematic on page 7 of the manual).
If you trace the path from 20U, you will see that it then goes to 14U. 14U goes to 12U via a bridge. 12L is connected to the ground of the headphone jack that in turn is connected to the lug on the potentiometer that is closest to the 9-pin socket. That lug is also connected to 3L that is where the ground starts.
So, when you connect the rectifier board, + goes to 21L (positive) and - goes to 20L (ground). This is why the silver band on the two UF 4007 diodes going to 21L is closest to that terminal (current flows in that direction ⇥ ) and those two going to 20L have the silver band away from that terminal (current is blocked ⇤ ).
One AC on the PCB is connected to the power transformer terminal 9 and the other to 10.
I could not find nylon standoff locally either. So I found some on eBay from this vendor:
http://www.ebay.ca/itm/250954612234?ru=http%3A%2F%2Fwww.ebay.ca%2Fsch%2Fi.html%3F_from%3DR40%26_sacat%3D0%26_nkw%3D250954612234%26_rdc%3D1
Make sure you get screws too, as they may also be difficult to find locally. Longer is better than shorter; you can always trim them if needed.
I hope this helps.
Richard
