Right Channel Death

[Colin]

Hi,
My crack got problem; right channel is death silence, when i upgrade the output cap with clarity px100. Because the size is too big so I make some holes to stand the caps(maybe the problem happen when i makes holes progress).
The resistance different from manual book is,
7 & 9 3.05Kohm
13.    max up to 5Kohm
Center rca pin 110Kohm

Anyone please help me.

Thank you,
Colin



[Paul Birkeland]

What voltages do you have?

3.05K isn't appreciably different than 3K.
Terminal 13 is marked with a *, which means anything that's significantly above 0 is good.
110K isn't appreciably different than 100K.

-PB



[Doc B]

Well, the obvious suggestion is that the part you changed may well be where the problem lies. I suggest looking at the solder connections of your new output capacitor.



[Colin]

Thank you for the replies.
The voltage is (only the different) :
2. 150v
4. 150v
13. 150v
15. 170v
21. 190v
A1. 80v
B2. 155v
B4. 80v
B5. 155v

I have take back the stock caps but the problem not be solve. Maybe the issues happen when i make holes(the vibration effect from machine). And also re solder joint in the part/wire i put down when install caps. But still haven't find the problem.

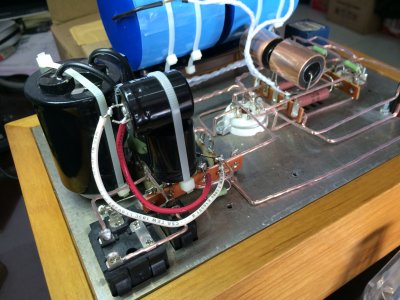

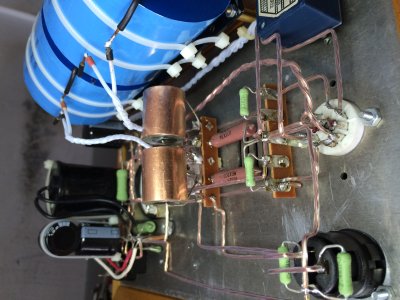

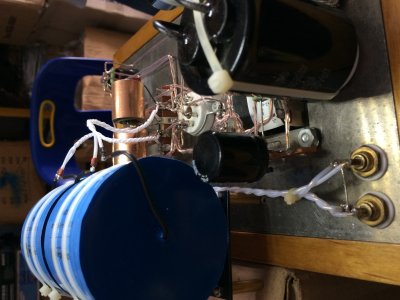

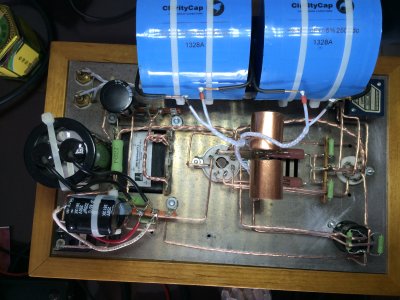

So i take some pictures here, maybe can help. Any suggestion will very helpful.
Thank you.



[Rocketman248]

Problems aside, that is one beautiful build!



[Colin]

Problems aside, that is one beautiful build!

Thank you. Sadly has problem.



[mcandmar]

Your problem is on the terminal strip below the 6080 socket, one set of output capacitors is wired incorrectly. Double check those connections from the manual.



[Colin]

Thank you Mcandmar. Now the problem is gone. Looking for speedball upgrade on next.
