Moreplay VDC reading out of range

[Freddyhoule]

Everything worked well until page 38. The reading of the voltage shows 334 VDC. I checked all my soldering and they seem to be OK. Is it still within a safe range? If not, is there an other way than redo every solder to solve my problem ?  Please note that I'm a total newbee. I dont know if it can be of any help, but the AC reading done at the beginning was 123.



[Paul Birkeland]

334 is kind of high, but if your line voltage is wandering high it may not be the end of the world.  I think you could continue with the build, but it might be a good idea to post some build photos so we can see what you have going on to be sure everything looks OK.



[Freddyhoule]

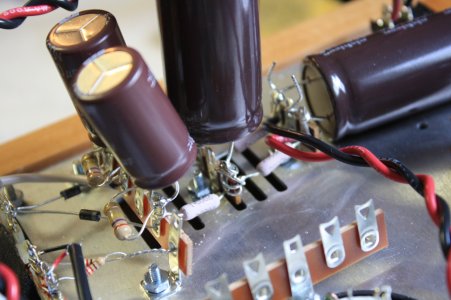

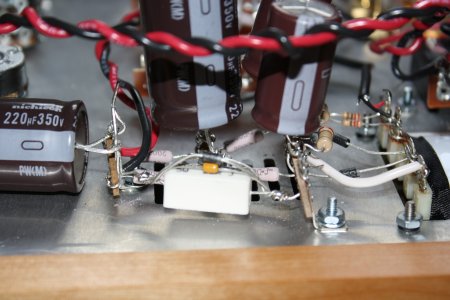

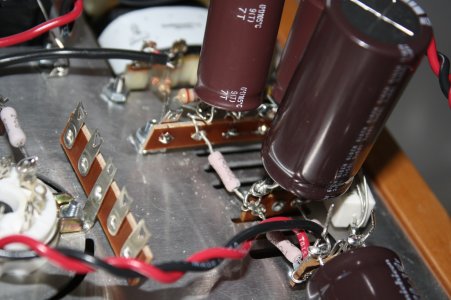

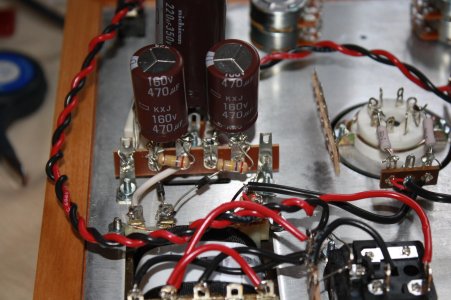

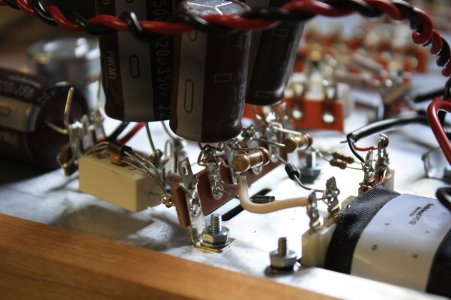

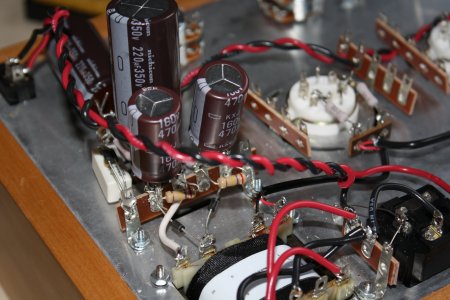

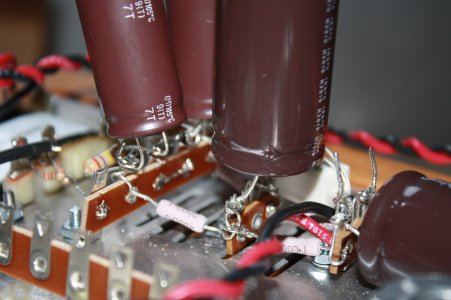

Some pics. Hope it can help. Maybe it doesnt show but my soldering skills are improving...  Thanks!



[Paul Birkeland]

I would do a lot more trimming, especially with those leads that are wrapped around the sides of the terminals.
