Cool! Do you have the dimensions by any chance? I can take a look at my amp to see if it would be worth the trouble. It would be a fun addition to my build.
Measuring voltages while playing a 60 Hz sine wave. [resolved]
- Thread starter Colonl_Charisma
- Start date
You have the dimensions, it's exactly the same as the stock pot but just has a different part number.
Colonl_Charisma
New member
Oh haha. I'll look into this on my end, and see if I can implement this into my amp.
Colonl_Charisma
New member
Hi, PB! So, after looking at my amp, I think I will be able to install another potentiometer for balance control. Can I order the pot off of DigiKey or Mouser?
Mouser has it. We provide RV24BF-10-15R1-B100K-LA as a balance pot with our kits. You'd need a pair of 33K resistors as well.
Colonl_Charisma
New member
Thanks! What kind of wires do you use for the Crack? I would like to pick up some extra to have on deck.
I’ll get those ordered, and I guess we can come back to the wiring once everything arrives.
edit:
Are these 100K resistors fine?
https://www.mouser.com/ProductDetail/Vishay-Dale/CCF02100KJKE36?qs=sGAEpiMZZMsPqMdJzcrNwncUUYJvQsyPlLH02FNSk8g%3D
I’ll get those ordered, and I guess we can come back to the wiring once everything arrives.
edit:
Are these 100K resistors fine?
https://www.mouser.com/ProductDetail/Vishay-Dale/CCF02100KJKE36?qs=sGAEpiMZZMsPqMdJzcrNwncUUYJvQsyPlLH02FNSk8g%3D
You want 20-22 gauge solid core tinned copper wire. Be sure it's tinned and be sure it's not stranded.
Colonl_Charisma
New member
Thanks for the info, PB. I will be sure to order that type of wire.
How do those resistors look? Does the power rating or tolerance matter for what I will be doing?
How do those resistors look? Does the power rating or tolerance matter for what I will be doing?
Sorry, you want 33K resistors.
I would not use 2W resistors in that position, that's overkill and just too big in general.
I would not use 2W resistors in that position, that's overkill and just too big in general.
Colonl_Charisma
New member
All good! I actually have two 33K resistors that are 1/8 W. I used these on my volume pot to pad it.
If you're ordering a pot, I would order more. It helps if they are a bit longer.
Colonl_Charisma
New member
Will do! I'll get all this ordered tonight.
Colonl_Charisma
New member
I should have everything in on Monday. How close should the balance pot be to the volume pot? I am going to go ahead and drill a hole in the chassis for the new pot.
Colonl_Charisma
New member
Thanks, PB! Should I desolder all of the old wire, or could I just clip the wires that I currently have and reattach them to the balance pot?
That is up to you. I've never done what you're doing, so you'll have to slog through it and figure some of this out on your own.
Colonl_Charisma
New member
No problem. This will be an interesting experiment haha. I do have my extra wire (and plenty of it), so if I need to redo my wiring it shouldn’t be a problem.
As far as the actual wiring goes, left and right rca jacks to the balance pot, and the balance pot to the volume pot, what is that looking like? Or is that something we will need to work through?
I really appreciate your help.
As far as the actual wiring goes, left and right rca jacks to the balance pot, and the balance pot to the volume pot, what is that looking like? Or is that something we will need to work through?
I really appreciate your help.
Karl5150
New member
Ross,

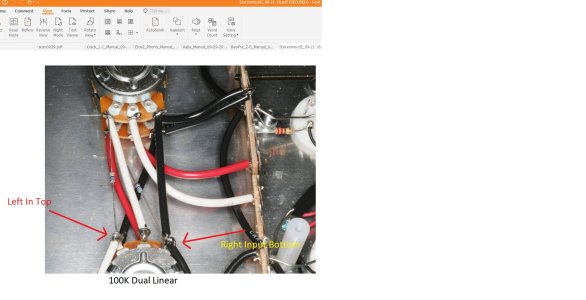

If space is tight and you haven't drilled yet, I was able to get the CtoC on the Vol/Bal pots down to 1.75" as per the photo Paul attached and 1.5" sitting side by side with the terminals pointing to the same side.
Another simple fix for the imbalance is dual-mono volume pots.
Good luck on your mods,
Karl
If space is tight and you haven't drilled yet, I was able to get the CtoC on the Vol/Bal pots down to 1.75" as per the photo Paul attached and 1.5" sitting side by side with the terminals pointing to the same side.
Another simple fix for the imbalance is dual-mono volume pots.
Good luck on your mods,
Karl
Colonl_Charisma
New member
Hi Karl,
I have not done any drilling yet. Would you mind posting a pic of your build? I'd like to see a longview of the wiring. The closeup view that Paul provided helps a lot, but I'd like to see the full view (I also realize that Paul's pic is not a Crack so a larger view of that one would probably not help me out much).
I appreciate the kind words! I believe this mod will go smoothly once I get going.
I have not done any drilling yet. Would you mind posting a pic of your build? I'd like to see a longview of the wiring. The closeup view that Paul provided helps a lot, but I'd like to see the full view (I also realize that Paul's pic is not a Crack so a larger view of that one would probably not help me out much).
I appreciate the kind words! I believe this mod will go smoothly once I get going.
Colonl_Charisma
New member
I got my holes drilled and my new potentiometer place inside my Crack. So far, so good. I am going to solder the connections as they are shown in the above image. I'll also try to post some pics later tonight of how it is looking after I solder the connections.
