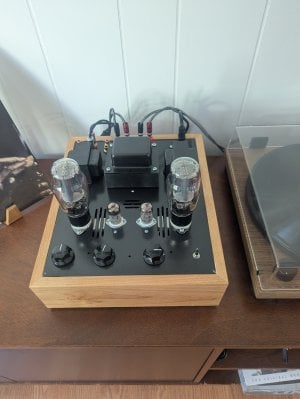

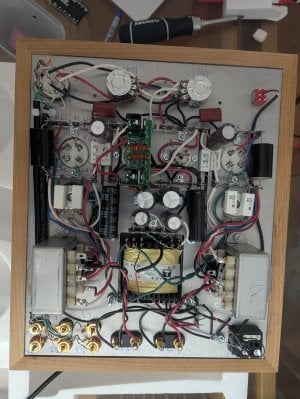

Hello, during my voltage checks for the Stereomour II I accidentally shorted the terminals while checking terminal 30 or 34 (I cannot remember the exact one). There was a rather loud bang, and then nothing as I jerked away my probe. After this I immediately unplugged the amp and checked the fuse (not blown). I decided to return to the voltage checks and immediately they were off, terminal 1 shows ~6 volts so I unplugged it all and decided to ask here. All resistance checks prior to this were spot on and voltage checks 1-30ish were also perfect. I've also attached a photo of the amp below. Thank you for any and all help.
Edit: The 130 Ohm 2W resistors between terminals 30 and 27 and 30 and 44 appear to be blown, so I'll try replacing those first.
