SEX3 page 61 glow test fail

[dkazakoff]

Hi there. I worked through the manual to page 60 passing all tests and checks until now. At this stage proceeding to page 61, I've inserted the tubes, connected power, and the tube filaments DO NOT glow. Checked the fuse, tried swapping it out and back again with another. Tested the switch again, passed. Checked terminals L and N, 120v. Couldn't get the tubes to glow, so thought I would proceed with a few voltage checks to try to narrow it down. Here is what I get on the first 7 terminals:

TERMINAL / V TARGET/ MY V
2 / 65-95v / 383mV
3 / 15-18 / 0
4 / 0 / 0
5 / 0 / 0
6 / 385v / 276mV
7 / 400v / 275mV

I'm considering re-wiring. Can I use a higher gauge than the 23awg which comes in CAT 6e? (I'd like to use 20 or 21 awg)



[Jameson]

Let’s focus on getting the stock build to work before you swap in a bunch of different parts. Can you post some photos of your build? Good lighting, a nice overhead shot, and some close-ups of those terminals that are way off would be a great start.



[Paul Birkeland]

Definitely post build photos and the voltages you see on the H1-H8 terminals.

I would not rewire the amp, and it's a bit of an odd question, as there shouldn't be any of the CAT5 wire installed yet if you are on the glow test stage.



[dkazakoff]

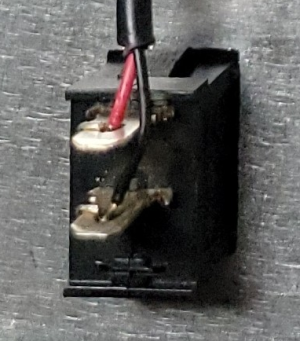

Ok, here are some photos--> https://drive.proton.me/urls/4RMXVARJK4#cIWy9DnEmSOi
I can upload them here as well if that is better for you let me know.

As far as voltage readings, I'm getting 120v at L and N, but zeros across the board:

VOLTAGES:
Terminal 2: 0 V (expecting 65V-95V)
Terminal 3: 0 V (expecting 15V-18V)
Terminal 4: 0 V (expecting 0 V)
Terminal 5: 0 V (expecting 0 V)
Terminal 6: 0 V (expecting 385 V)
Terminal 7: 0 V (expecting 400 V)
Terminal 10: 0 V (expecting 380 V)
Terminal 16: 0 V (expecting 65V-95V V)
Terminal 17: 0 V (expecting 15V-18V V)
Terminal 18: 0 V (expecting 0 V)
Terminal 19: 0 V (expecting 0 V)
Terminal 20: 0 V (expecting 385 V)
Terminal 21: 0 V (expecting 400 V)
Terminal 24: 0 V (expecting 380 V)

H2,H5: 0 V (expecting ± 2.8V-3.2V)
H4,H7: 0 V (expecting ± 2.8V-3.2V)

L and N: 120v
Power Transformer terminal 7 and 9: 0 V
Power Transformer terminal 12 and 11: 0 V

RESISTANCE:
With DMM black connected to the ground buss at H1:
ground tab at the power transformer: 0R
Terminal 1: 0 R (expecting 0)
Terminal 2: OL (expecting OL)
Terminal 3: 887 R (expecting 880 R)
Terminal 4: 248.5 K (expecting 249 K)
Terminal 5: 0 R (expecting 0)
Terminal 6: OL (expecting OL)
Terminal 7: OL (expecting OL)
Terminal 8: 0 R (expecting 0)
Terminal 9: 0 R (expecting 0)
Terminal 10: OL (expecting OL)
Terminal 11: 680 R (expecting 680 R)
Terminal 12: 0 R (expecting 0)
Terminal 13: OL (expecting OL)
Terminal 14: 0 R (expecting 0)
Terminal 15: 0 R (expecting 0)
Terminal 16: 220 K (expecting OL)
Terminal 17: 890 R (expecting 880 R)
Terminal 18: 249 K (expecting 249 K)
Terminal 19: 0 R (expecting 0)
Terminal 20: OL (expecting OL)
Terminal 21: OL (expecting OL)
Terminal 22: 0 R (expecting 0)
Terminal 23: 0 R (expecting 0)
Terminal 24: 70+ K (expecting OL)
Terminal 25: 680 R (expecting 680 R)
Terminal 26: 0 R (expecting 0)
Terminal 27: OL (expecting OL)
Terminal 30: 110 R (expecting OL)
Terminal 31: 110 R (expecting OL)
Terminal 32: OL (expecting OL)
Terminal 33: OL (expecting OL)
Terminal 34: OL (expecting OL)
Terminal 35: OL (expecting OL)
Terminal 36: 0 R (expecting 0)

H1: 0 R (expecting 0)
H2: 110 R (expecting OL)
H3: 5 K (expecting OL)
H4: 110 R (expecting OL)
H5: 110 R (expecting OL)
H6: 5 K (expecting OL)
H7: 110 R (expecting OL)
H8: 0 R (expecting 0)

rca jacks:
Center pin: 93 K
Ground tab: 0 R
