Sex 3.0 C4S upgrade
- Thread starter joralieu
- Start date

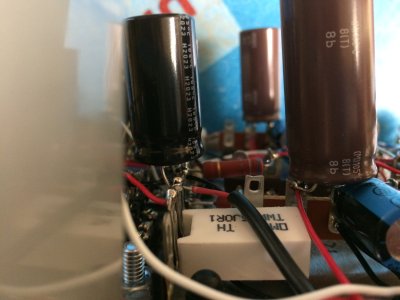

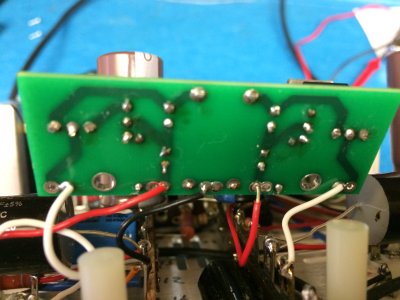

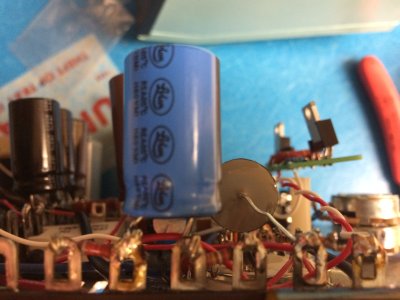

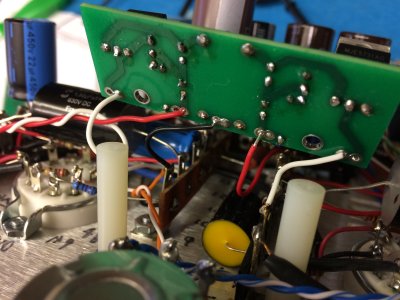

Can you post a picture of your installation?

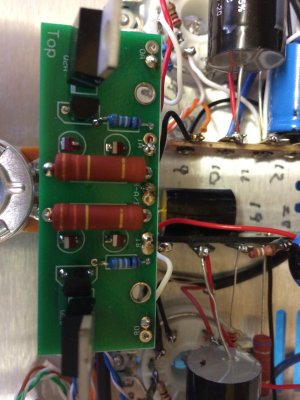

You have a backwards transistor.
On the C4S board.joralieu said:
There are a few ways to deal with this. You can purchase a replacement PN2907 transistor, then cut the one off that's on there now but cut it so that as much of each lead is left sticking up out of the board as possible, then heat up each pad and slip the lead out, then install the new transistor.
You could also attempt to use solder wick, a spring loaded desolder pump, or an electric vacuum desoldering tool to remove the solder that's there, then turn the transistor around and solder it back in. The PN2907 should still work just fine.
If someone else built this, I would send it back.
You could also attempt to use solder wick, a spring loaded desolder pump, or an electric vacuum desoldering tool to remove the solder that's there, then turn the transistor around and solder it back in. The PN2907 should still work just fine.
If someone else built this, I would send it back.
Well I got this last winter when I purchased the sex kit. The upgrade came with the board already assembled. Is this the way they come now? I kinda thought it was weird that the the instructions show how to assemble the board when mine came prebuilt. I guess I will attempt to desolder the transistor and turn it around.
Thanks
Joe
Thanks
Joe
Our boards do not come pre-built.joralieu said:
Are you sure you got this from us?joralieu said:
This is really odd, as the building where the packing and order fulfillment happens often doesn't have the tools present to populate and solder up a board. When these kits are packed, parts are laid out and several kits are packed all at the same time, so this would be highly unusual. Moreover, if you asked for a built board, that request likely would have gone to me.
Now that I had some time to reflect on this I think I did assemble the board. The soldering was so perfect( except for the backwards transistor) I thought it was built by somebody other than me. The thing is that it came with 2 boards and I must have done the board when I was doing the sex amp and didn't remember that I did it ( it was a while ago) any way my apologies for the complaint. Still would like to fill this empty board just for practice if I could buy the parts from you. By the way I managed to desolder the transistor and flip it and it sounds great?
Thanks
Joe
Thanks
Joe
Is it possible that the other board might be for a different kit you also have?
If there's a Speedball with that Crack, it would have that same small board included.
QueenBottlehead
Administrator
Hi Joe, I am happy to send you a PayPal invoice for the parts you need for the second board. They are so skinny that I must have packed two in the little baggie by mistake. I will be back in the office on Monday. I am happy that you made good progress with your build. Happy Listening! ~Eileen
It's a very good idea to paint the transformer cover and the actual metal stack of the transformer itself too. I take painter's tape and wrap a loop around the terminals so they don't get painted, then spray the transformer with black nitro lacquer. I would get a recognizable brand and avoid stuff like the Ace Hardware brand.
For the cover, I find it works well to clean it with steel wool and alcohol, then clear coat or also spray it with the black lacquer.
The chassis plate will look the way it does for a long, long time. When I get old brushed kits back, typically the aluminum is just dirty more than anything.
For the cover, I find it works well to clean it with steel wool and alcohol, then clear coat or also spray it with the black lacquer.
The chassis plate will look the way it does for a long, long time. When I get old brushed kits back, typically the aluminum is just dirty more than anything.
