No left channel

[ArtnShit]

Hi,

I just finished the build and passed all of the resistance and voltage checks. I then installed Sowter 1990s in 1:20 setups.

Everything sounds totally fine on the right channel, but there is nothing on the left channel. Are there any main areas I should inspect first? How should I go about finding the error?

Thanks in advance



[Paul Birkeland]

Did you listen to the Eros without the step-up transformers first? Yes, the level will be low, but that would be a good way to verify that the base build is properly working.



[ArtnShit]

I did not, unfortunately.

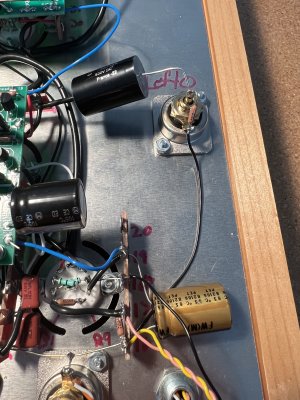

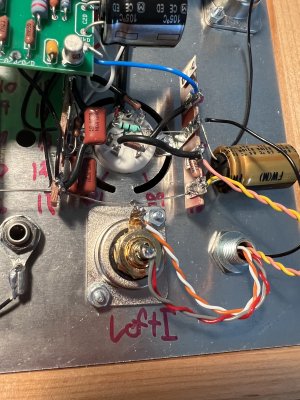

Here are some pics of the input installation. Other than that, I know the boards should be soldered well cuz I have reflowed all of them in my previous attempts to fix voltage.

Thank you



[Paul Birkeland]

You may have solder connecting the center of that RCA jack to the shell, and that would short that channel and not let anything through.
