Mainline voltage checks

[Bourney]

Hi there, first time post from me.

Just finished the build, all resistance checks are OK, but I have 3 out of spec voltages:
BREG (B) = 272v (BREG A is 218v)
KREG (A) = 1.1v
KREG (B) = 2.0v

All other voltages within spec.

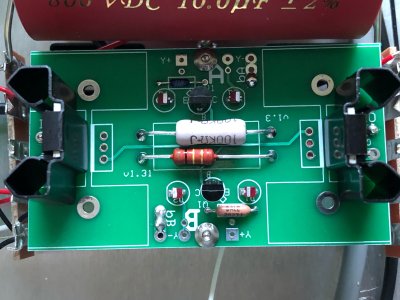

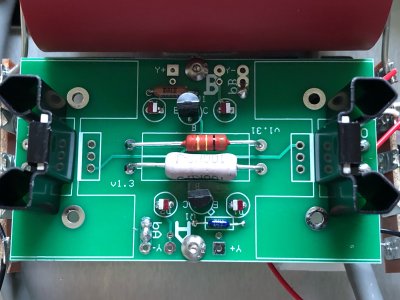

I notice I have 2 LED not lit on the A side of the chassis C4S board on the B side of that C4S board. The other 6 LED are lit.

Thanks for any help you can offer.



[Paul Birkeland]

Are you able to perform the 6C45P biasing procedures with all these issues?

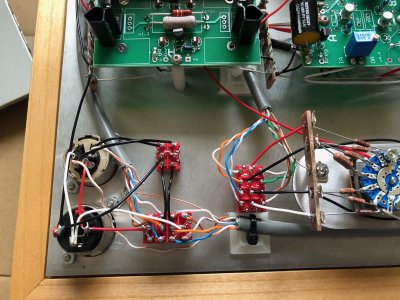

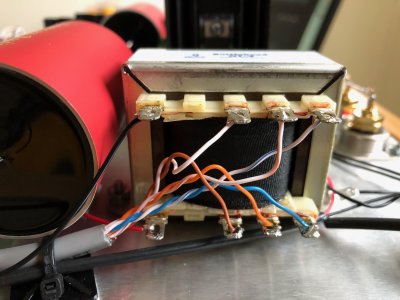

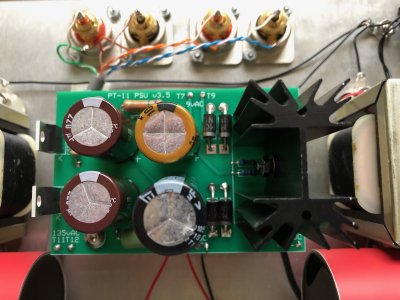

Can you post some build photos?

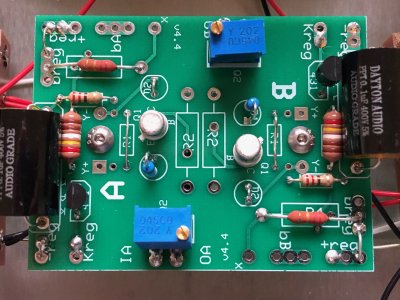

What are the OB/OA voltages on the center PC board?



[Bourney]

Hi Paul,

I can bias the A side 6C45P to 145v no problem.
The B side will not come down below ~212v.

OB voltage = 0.97v
OA voltage = 1.19v

Thanks



[Paul Birkeland]

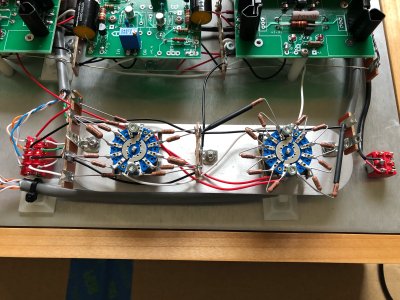

I would carefully review the wiring on the 6C45P sockets, paying careful attention that the unpopulated pins are the correct ones in your build.



[Bourney]

Thanks again Paul,

Checked all the wiring to the sockets, all looked fine.

I pulled the 6C45P tubes out, swapped them between sockets, and magically everything tests within spec.

Possibly one tube has a bad leg which is used on one socket but not the other? Otherwise its a mystery.

All good now. Sounds great.



[Paul Birkeland]

That is a possibility, or there's a loose connection that was jostled into making proper contact.
