help with schematic

[aragorn723]

Hi,

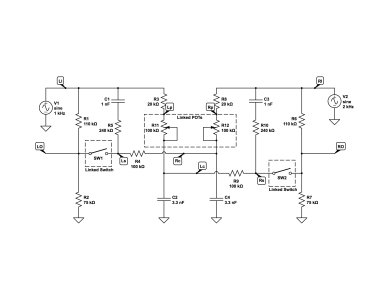

I'm having trouble reading the attached schematic.  What should be connected to the "off" terminals of the switch?  Is it points LS and RS?

Thanks,

Dave



[RayP]

Looking at the schematic, it appears to be a way of passing some of the left channel signal to the right channel and vice versa.

My guess is that nothing should be connected to the 'off' position. LS and RS are connected to the 'on' position.

More info on what the circuit is supposed to do would help.

ray



[aragorn723]

The circuit is for a 3d preamp.  It was originally posted here:

http://bottlehead.com/smf/index.php?topic=6406.0

The switch in the pictures looks different than mine (i'm using a DPST switch, whereas the pictures in the original post have 6 terminals).  Thanks,

Dave



[Tubejack]

Your switch s/b fine.  In the original pic there is nothing connected to the other side (2 terminals) of the DPDT switch.



[aragorn723]

ok cool.  So is hooking up the switch as easy as hooking up the "off side" of each to RS and LS, and the on side to RO and LO?  Thanks,

Dave
