Help with Resistance Checks [solved]

[bkanaley]

Hi,

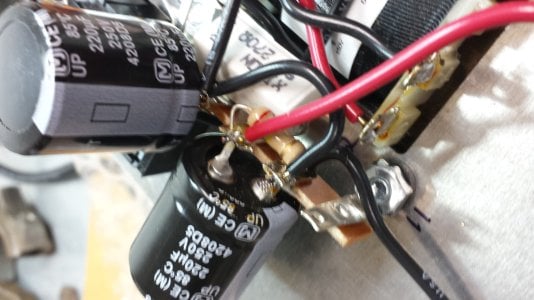

I completed my Crack build, reviewed all the wiring and did the resistance checks. I ran into one anomaly and I want to ask for some assistance. When I do the resistance check on terminal 13 the meter starts around 20 mega ohms and drops from there. Is there something I should be looking for in the power supply area? The other varying resistance checks (terminals 1, 2, 4, 5) followed the notes in the manual. All other resistance checks were spot on.  As a result of this I have not done any voltage checks yet. I will try to include a picture if that helps any.
thanks,
Bob



[Paul Birkeland]

If 13 isn't very low, then you're safe to proceed to voltages.

Some meters can read the 270K resistor in that position, but most can't.

-PB



[bkanaley]

Thanks  ;D I'll go ahead and do the voltage checks and hopefully report back on the wonderful sounds of a fully functioning Crack amp. I'll include pictures too.
Thanks again



[bkanaley]

OK I did the voltage checks and everything checked out fine so I plugged in an old portabel CD player and took a listen. With cheap headphones and the poratble it sounded great. Had to see how my HD600s woudl sound and they were wonderful. Wow I want to get this into my system but I have to finish the base.
Yes anouther happy crack fanatic.

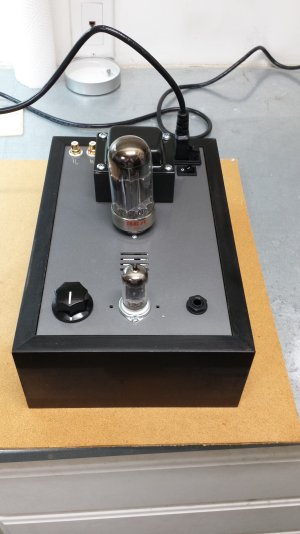

Here is a picture of the completed crack.



[Paul Birkeland]

That turned out great!



[bkanaley]

Yes, until I moved it into my system. I lost the left channel. So far I confirmed it is not an input issue so tonight I'll do the resistance checks and voltage checks again (start with the basics). I suspect it to be the ever illusive cold solder joint. LEDS were lit; both tubes were glowing so I am looking at the connections on the output side first. It made me study the schematic more and that is part of the whole trip



[bkanaley]

OK, all is well. I re-flowed a couple of solder connections and it sounds better than ever. Now I can break it in and start assembling the speed ball boards. Thanks guys for a great and fun project.
