Fuse blows when powered on [resolved]

[Bakemono]

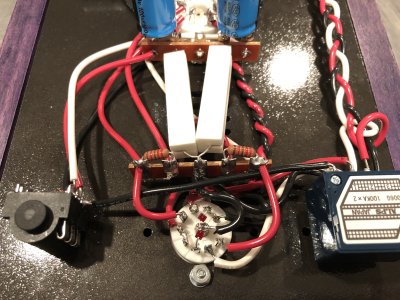

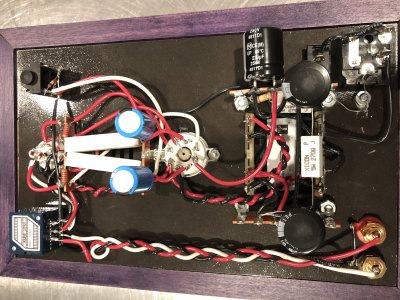

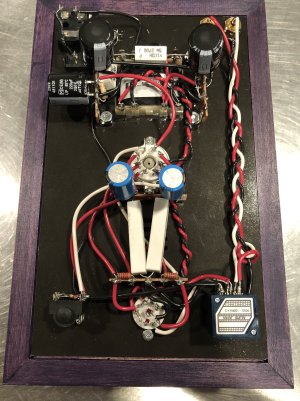

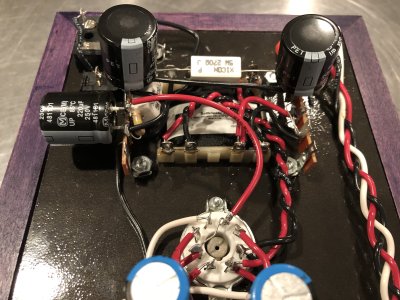

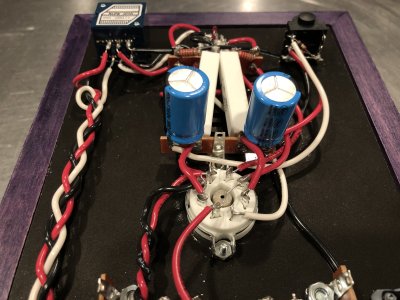

It passes all the resistance checks but when I plug it in and turn it on the fuse blows. I've rechecked the wiring 3 times now and had a friend check over it as well and it doesn't appear that anything is out of place. I did do the 5/6/10 revision if that has anything to do with it? Not really sure where to go from here. I've attached some pictures below, maybe I missed something



[Paul Birkeland]

I see leads touching around terminal 19 that shouldn't be.



[Jimb0]

Those diodes between 18 and 20 and 18 and 21 are not oriented correctly



[Bakemono]

I re-soldered the diodes between 18 and 20 and 18 and 21 and also made sure that leads that weren't supposed to be touching, aren't. I turned it on and the fuse blew again unfortunately. I rechecked the resistances afterwards and they all seem to measure correctly.

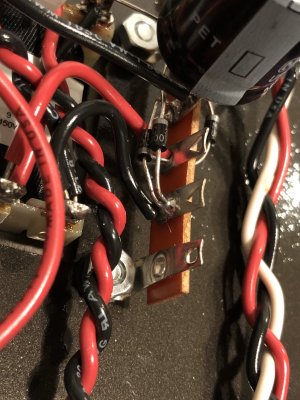

I've attached a picture of how that area looks now, the rest remains unchanged from the previous pictures I've sent.



[Paul Birkeland]

Could you show us the other side of the terminal strip with the UF4007 diodes?



[Bakemono]

I changed the revision (connected it to 22L now) and also changed the fuse from a .5A to a 1A fuse and it works now! Thank you both for the help.
